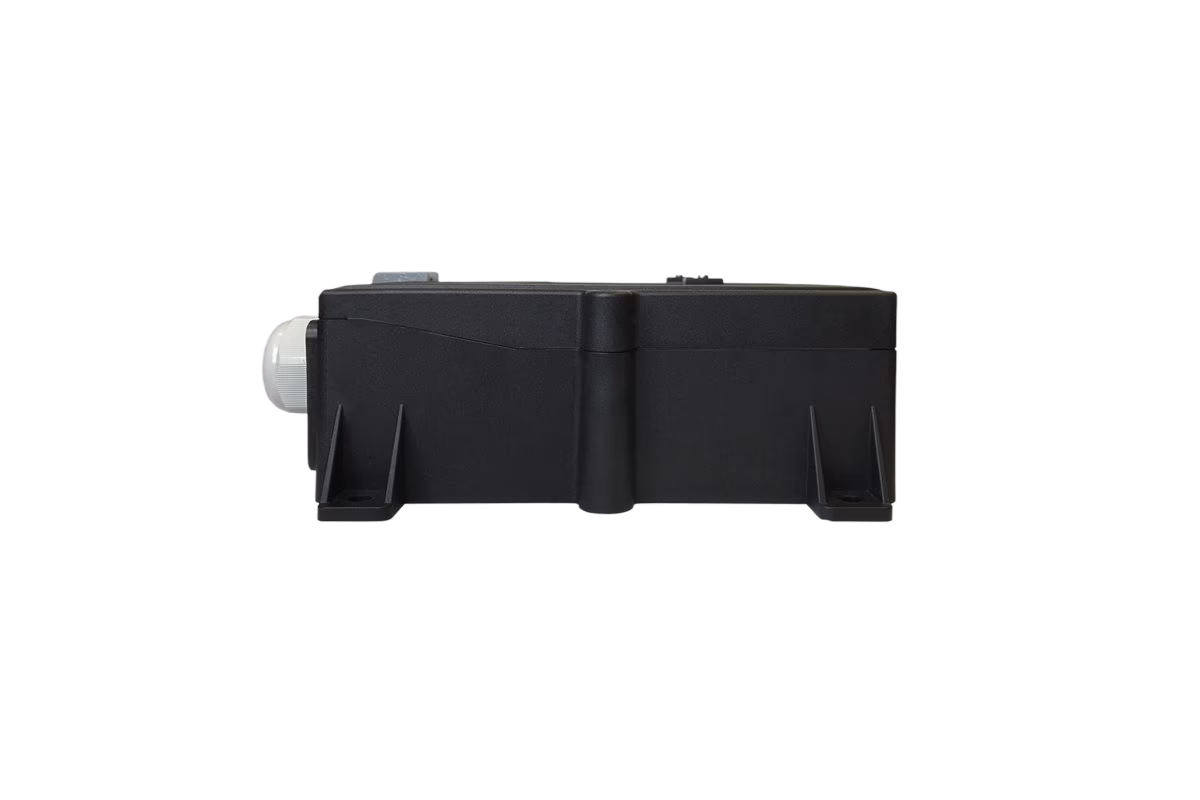

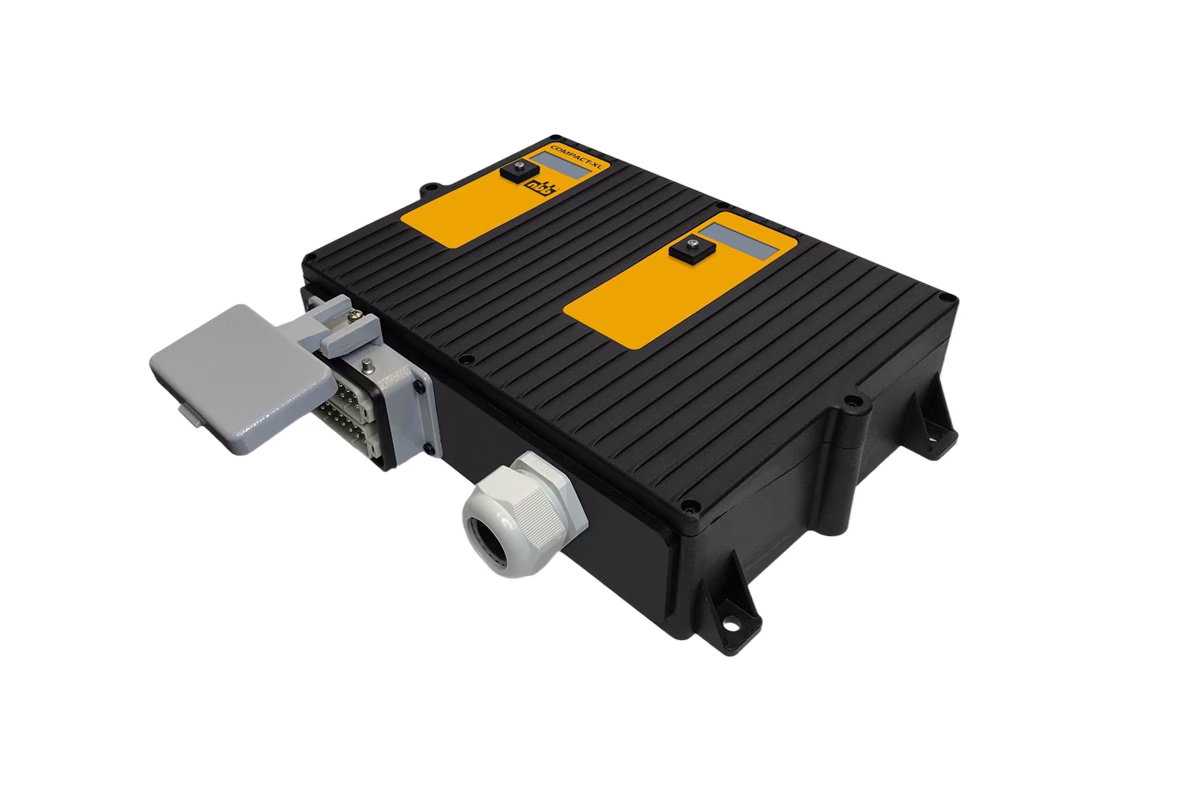

Compact-XL DC-R50
The largest receiver in the NBB™ portfolio. Capable of accommodating large designs with a high volume of input and output requirements. Available in many different configurations.
Precision engineering Combined with efficient, Ergonomic design are the DNA of NBB™ controls and components GMBH of Germany.
nbb™
Compact-XL DC-R50
Compact-XL DC-R50
Features /
Specifications
- High quality German robust design
- The largest available receiver housing
- Synthesised scanning receiver with 67 radio channels
- Up to 40 PWM outputs. PWM outputs can also be configured as CMOS on/off
- 10 CMOS outputs
- 8 analog 0-10V outputs or 8 ratio metric outputs (Danfoss)
- 6 digital opto inputs
- 3 DC analog inputs
- 2 x CAN interfaces
- RS232 interface
- 4A max switching current
- Force guided emergency stop relay
- Self checking of emergency stop relay
- Separately fused emergency stop circuit
- Connection via multicore cable or customised cabling and connectors
- Optional multipole connector/s directly mounted to receiver enclosure
- Typically supplied with prewired multipole connector and plug base
- Easily accessible programming / calibration port
- Calibration of proportional outputs / speeds can be adjusted via computer interface
- Manual adjustment of speeds can be also done from the transmitter
- Fully programmable to match the application
- 2 diagnostic LEDs
- Optional potting / encapsulation of internal electronics for vibration protection
- External mount antenna connection
- Unity gain and high gain antenna options available
- 8-35V DC operating voltage
