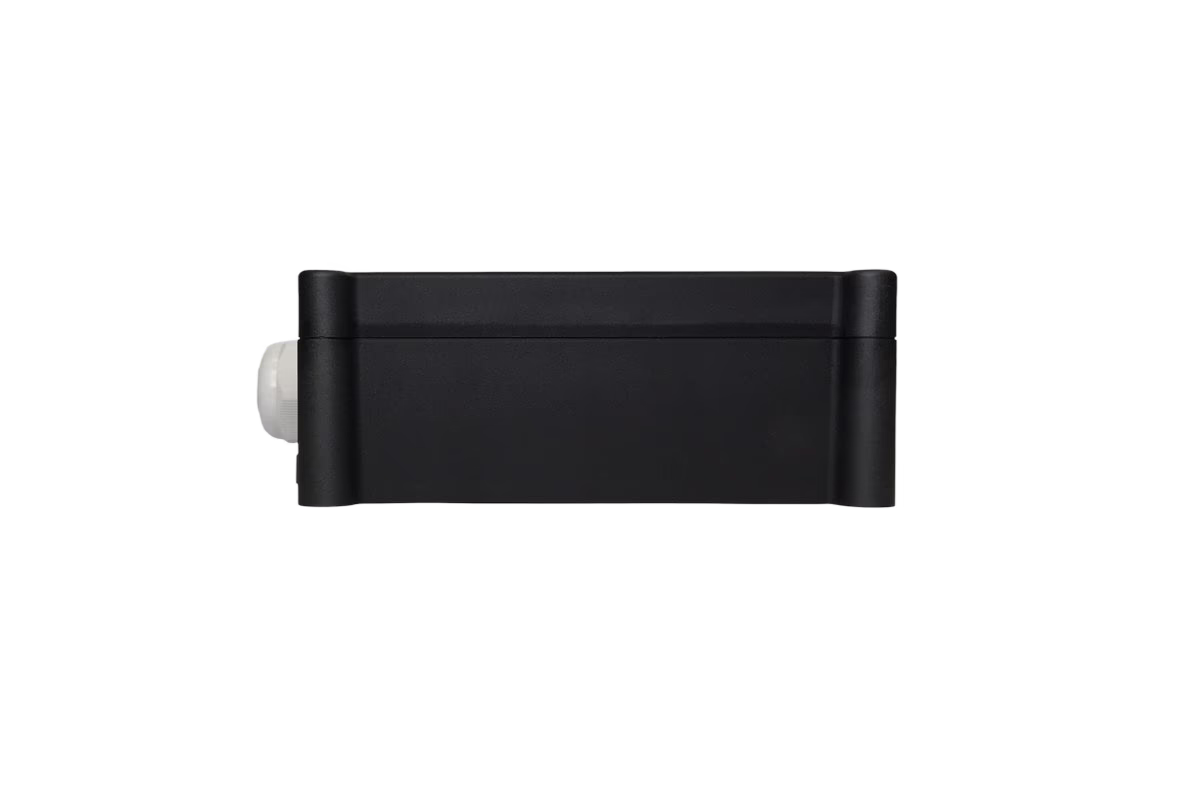

Compact-M2 R20
The Compact M2 is a small receiver that caters for many applications. Don’t be fooled by the small size, this receiver can control a huge scope of applications.
Precision engineering Combined with efficient, Ergonomic design are the DNA of NBB™ controls and components GMBH of Germany.
nbb™
Compact-M2 R20
Compact-M2 R20
Features /
Specifications
- High quality German robust design
- Synthesised scanning receiver with 67 radio channels
- Up to 12 PWM outputs. PWM outputs can also be configured as CMOS on/off
- 8 CMOS outputs. A total of 20 CMOS outputs if no PWM is required
- 2 analog 0-10V outputs instead of 2 CMOS outputs
- 8 ratio metric outputs (Danfoss)
- Up to 2 digital opto inputs
- 2 x CAN interfaces
- RS232 interface
- 4A max switching current
- Force guided emergency stop relay
- Self checking of emergency stop relay
- Separately fused emergency stop circuit
- Connection via multicore cable or customised cabling and connectors
- Typically supplied with prewired multipole connector and plug base
- Easily accessible programming / calibration port
- Calibration of proportional outputs / speeds can be adjusted via computer interface
- Manual adjustment of speeds can be also done from the transmitter
- Fully programmable to match the application
- 2 diagnostic LEDs
- Optional potting / encapsulation of internal electronics for vibration protection
- External mount antenna connection
- Unity gain and high gain antenna options available
- 8-35V DC operating voltage
