Industrial Radio Remote Control Systems

Authorised Australian & NZ Dealer for NBB Controls & Components GmbH, Germany

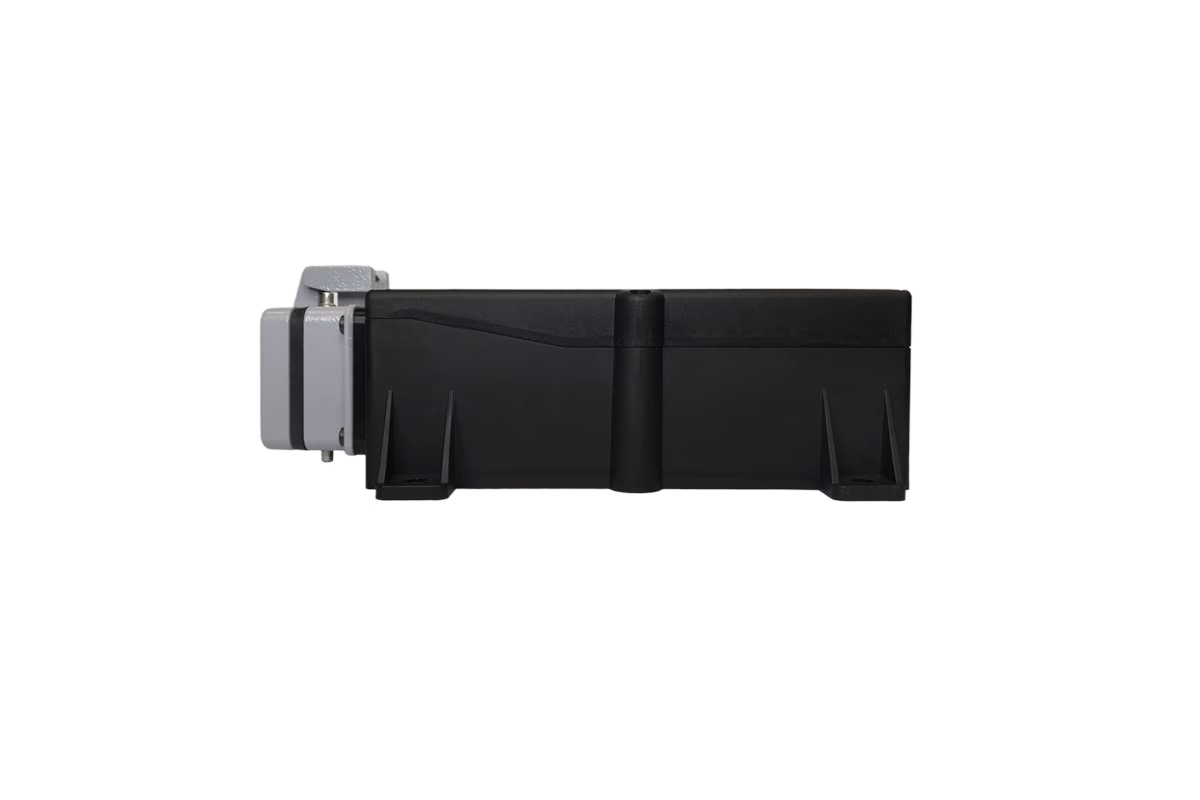

Compact-V AC R20

The Compact V is a medium sized receiver that caters for a high number of outputs and interfaces. One of the most popular and adaptable receivers.

Precision engineering Combined with efficient, Ergonomic design are the DNA of NBB™ controls and components GMBH of Germany.

Compact-V AC R20

Features /

  • High quality German robust design
  • A medium sized multi-function receiver
  • Synthesised scanning receiver with 67 radio channels
  • Up to 20 relay outputs
  • Relays have fuse protection
  • 4A max switching current depending on application
  • Force guided emergency stop relay
  • Self checking of emergency stop relay
  • Separately fused emergency stop circuit
  • Connection via multicore cable
  • Optional multipole connector/s directly mounted to receiver enclosure
  • Typically supplied with prewired multipole connector and plug base
  • Easily accessible programming / calibration port
  • Fully programmable to match the application
  • 2 diagnostic LEDs
  • RS232 interface
  • External mount antenna connection
  • Unity gain and high gain antenna options available
  • 40-250V AC operating voltage
